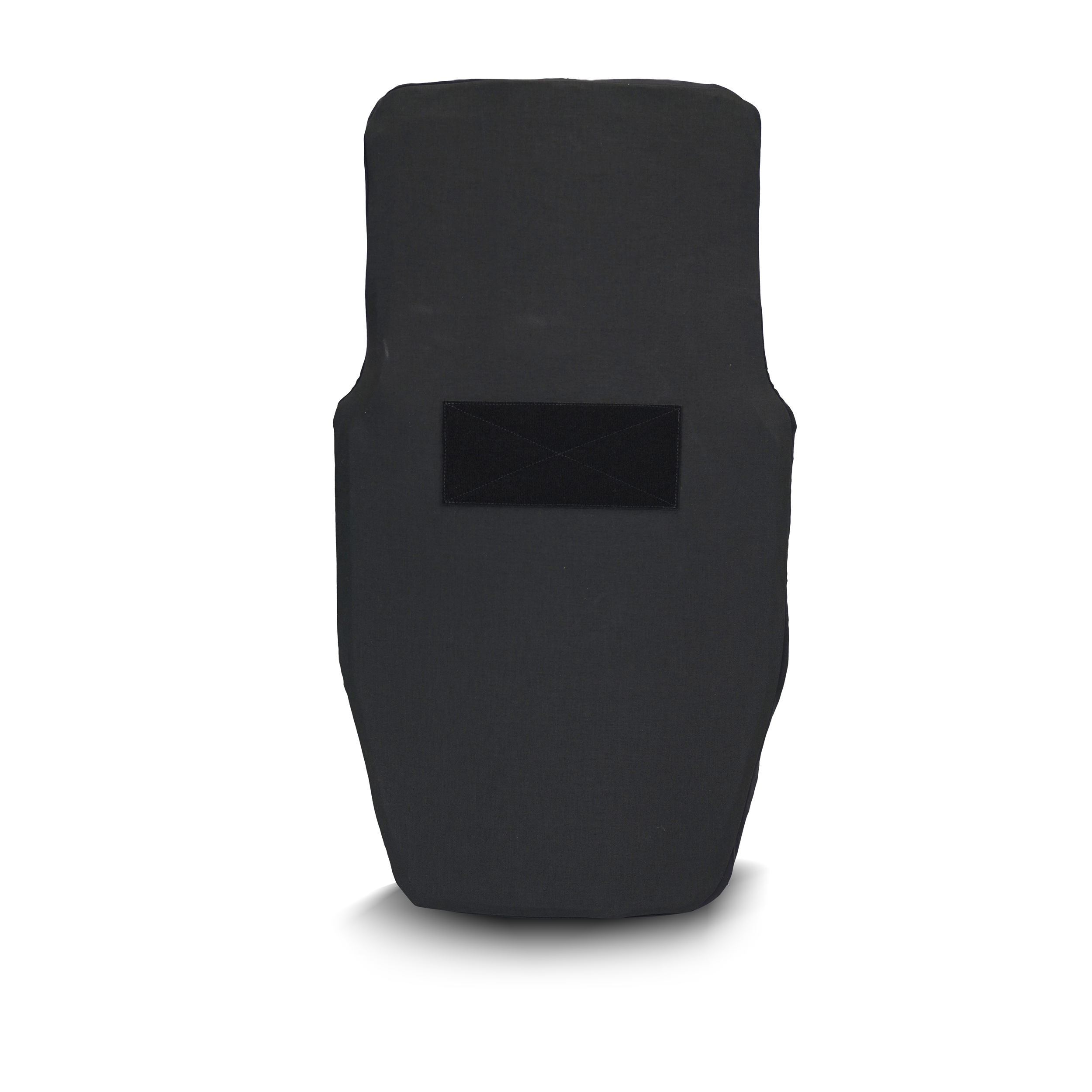

TYR Tactical® 18” X 32” Level III+ (M855) Rapid Response Ballistic Shield (Patent Pending)

The TYR Tactical® Patent Pending CQB3+ (M855) Special Mission Rapid Response Ballistic Shield is built to work as a standalone shield in close quarter combat.  The ergonomic design is lightweight, easily maneuverable and provides protection from Level III+ threats. The CQB3+ comes standard with a padded shield handle and form arm pad for increased comfort when used for an extended period of time.  The patent pending Ballistic Ridge provides protection to the perimeter of shield from damage due to impact. It also provides additional protection against back face deformation and side spall created by a ballistic event. TYR Tactical® also offers an array of additional shield accessories and solutions including lighting options, digital viewport and load carriage/dolly systems.

Description

The TYR Tactical® 18” x 32” CQB3 Plus (M855) Rapid Response Ballistic Shield is built to work as a stand-alone Level III Plus shield

Features:

  • Forearm pad
  • Carry bag
  • Fixed shield handle
  • Patent Pending Ballistic Ridge®
  • Nylon Shield Cover with Ballistic Vein®
  • Patent Pending shield assembly design for high performance
  • Placard Location

Specifications:

Weight: 26 lbs. / 11.8 kg
Dimensions: 18” x 32” / 45.7 cm x 81.3 cm
Testing Standard: NIJ 0108.01
Protection Level: Level III Plus Special Threats
Configuration: Stand Alone
Shield Thickness: .67 in. / 17.02 mm
Curvature: Single Curve
Materials: UHMWPE & Hybrid Ceramics
Cover: Black Polyurea
Threats:
5.56 x 45-mm, 55-grain M193 Ball
7.62 x 39-mm, 123-grain PS Ball
7.62 x 51-mm, 149-grain M80 FMJ
7.62 x 54R-mm, 148-grain LPS
5.56 x 45 -mm, 62-grain M855 (2550 FPS)
